thicknessGAUGE

Sensor system for precise thickness measurements of strip and plate materials

Sensor system for precise thickness measurement of strip and plate materials

thicknessGAUGE sensor systems are used for precise thickness measurements of strip materials, plates and sheets up to 50 mm. Several models with different sensor types, measuring ranges and measuring widths enable inline thickness measurements of different materials and surfaces based on an unmatched price/performance ratio.

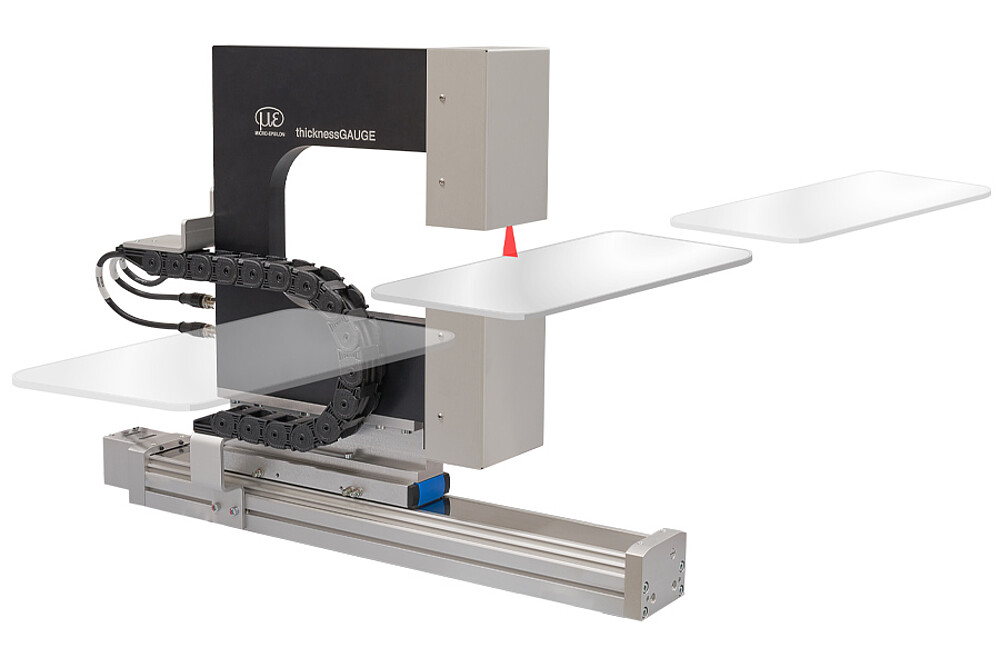

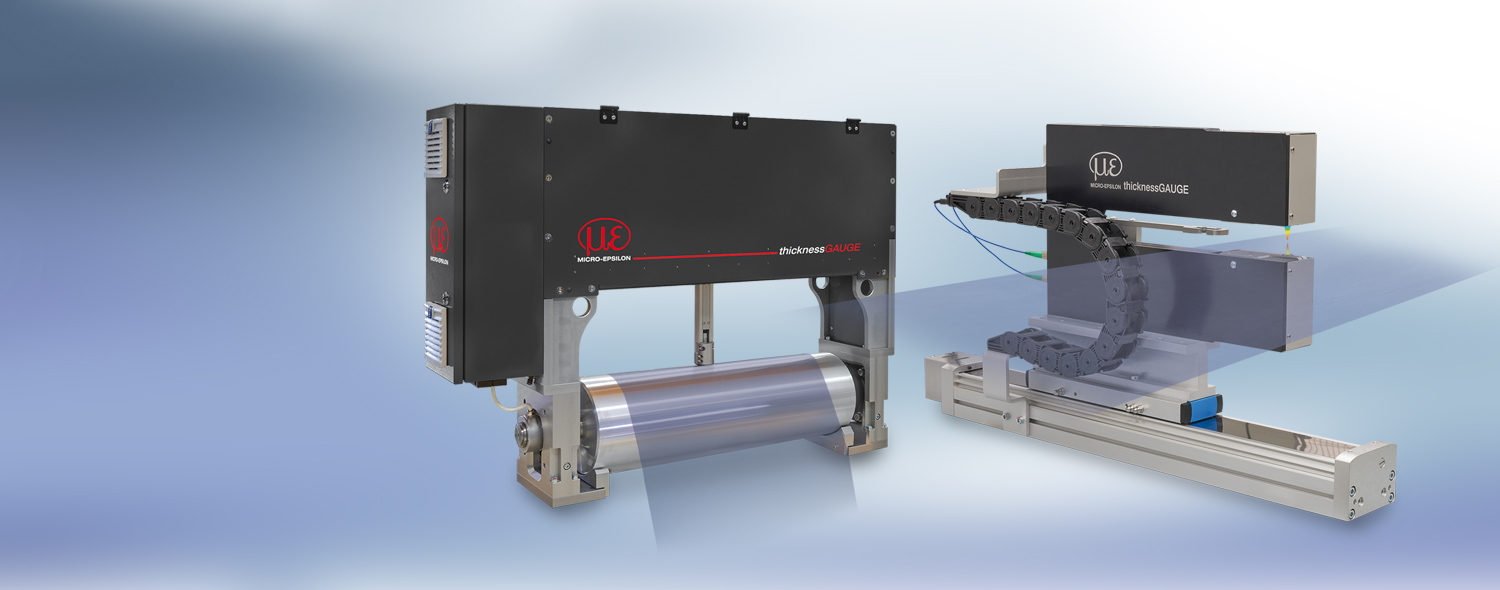

This fully assembled system comprises a stable frame on which two optical distance sensors are fixed, which detect the thickness of the measuring object according to the difference principle. The sensors are perfectly aligned to each other during the assembly. Furthermore, thickness calibration at the factory enables high precision thickness measurements.

A linear axis moves the sensor system from the parking position to the measuring position. A measurement standard for fully automatic calibration is in the parking position.

צור קשר

דגמים

thicknessGAUGE 3D

מדידות עובי ופרופיל בקו

טווח מדידה (עובי): 15 מ"מ

דיוק: ± 1.2 מיקרומטר

קצב מדידה: 0.5 קילוהרץ

thicknessGAUGE C.LL

Inline-Dickenmessung (Lasersensoren)

טווח מדידה (עובי): 6 | 50 מ"מ

דיוק: ± 1 / ± 5 מיקרומטר

קצב מדידה: 10 קילוהרץ

thicknessGAUGE C.C

Inline-Dickenmessung (konfokal)

טווח מדידה (עובי): 2.5 מ"מ

דיוק: ± 0.4 מיקרומטר

קצב מדידה: 10 קילוהרץ

thicknessGAUGE C.LP

Inline-Dickenmessung (Laser-Profilsensoren)

טווח מדידה (עובי): 15 מ"מ

דיוק: ± 1.2 מיקרומטר

קצב מדידה: 0.1 קילוהרץ

thicknessGAUGE O.EC

Inline-Dickenmessung (Wirbelstrom/kapazitiv)

טווח מדידה (עובי): 3 מ"מ

דיוק: ± 0.3 מיקרומטר

קצב מדידה: 3.9 קילוהרץ

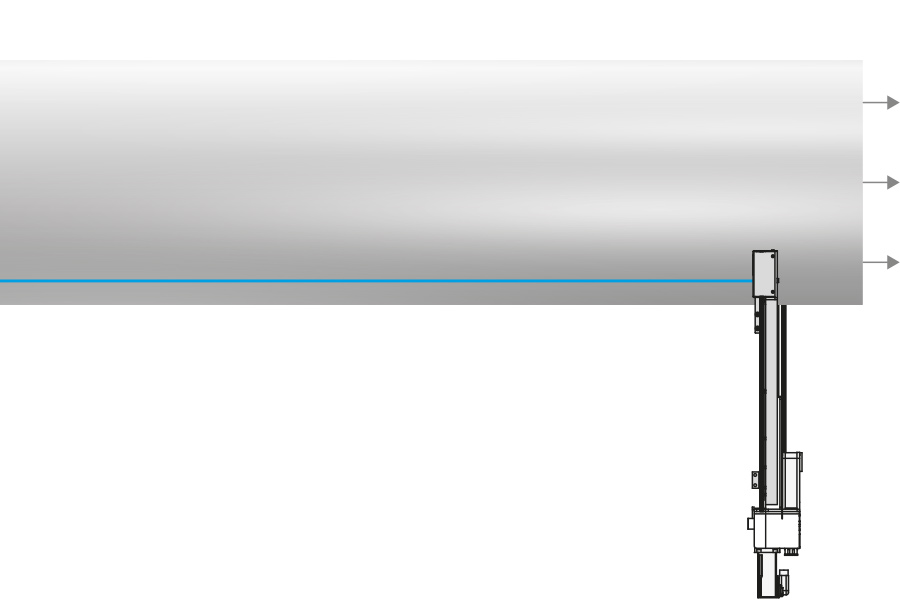

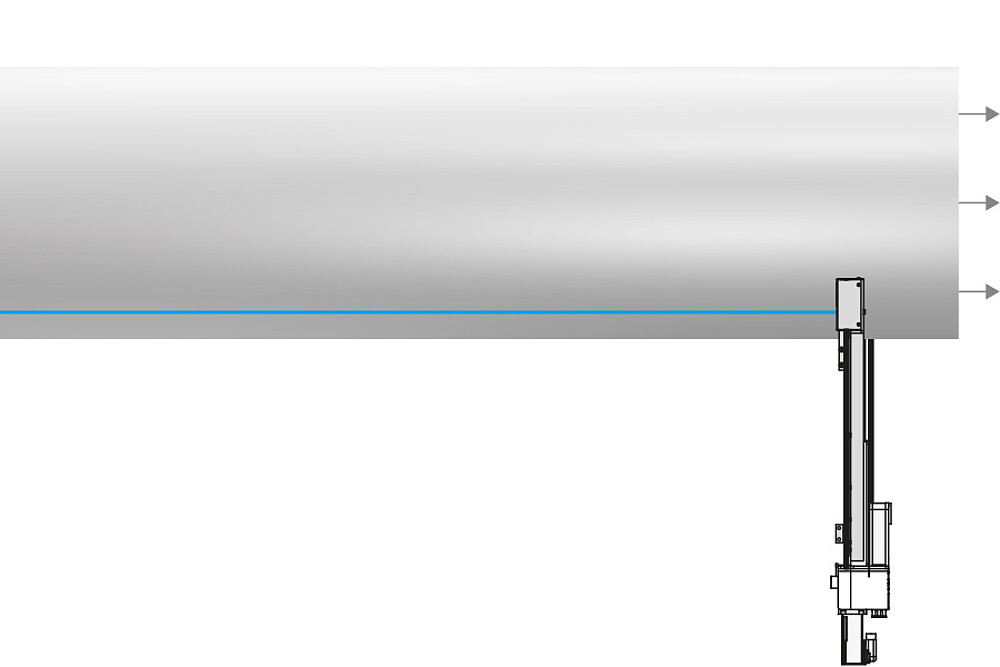

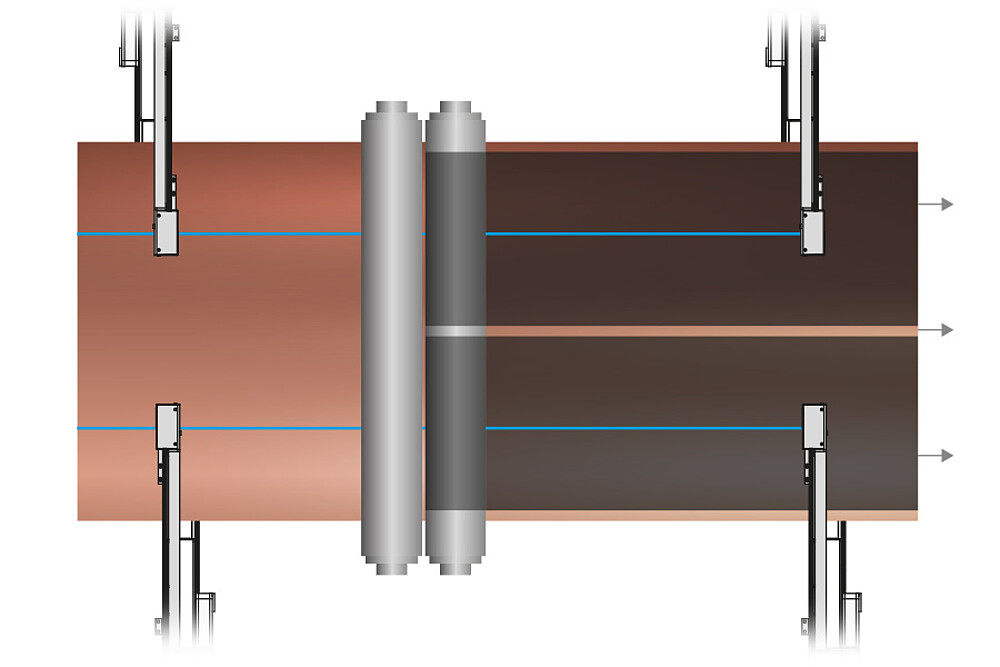

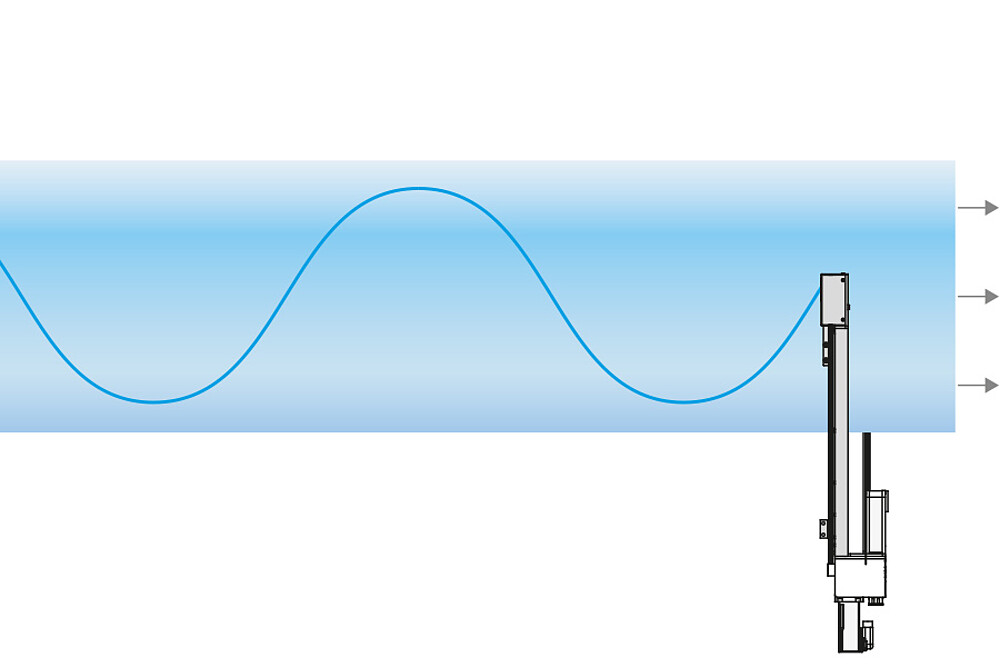

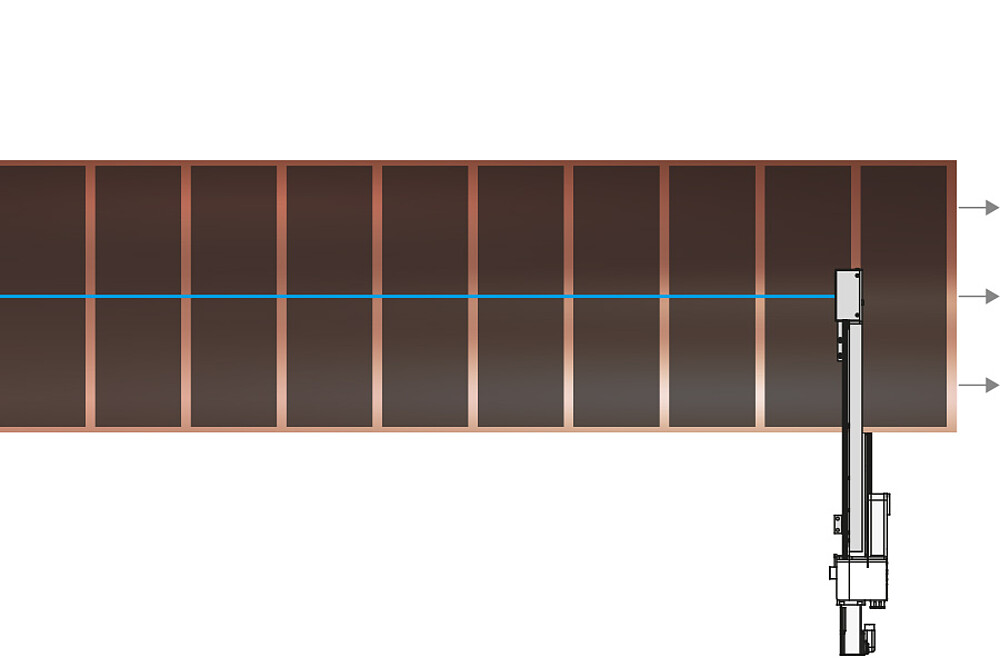

Fixed-track center thickness measurement

מדידות פרופיל ותלת-מימד מדויקות בזמן אמת

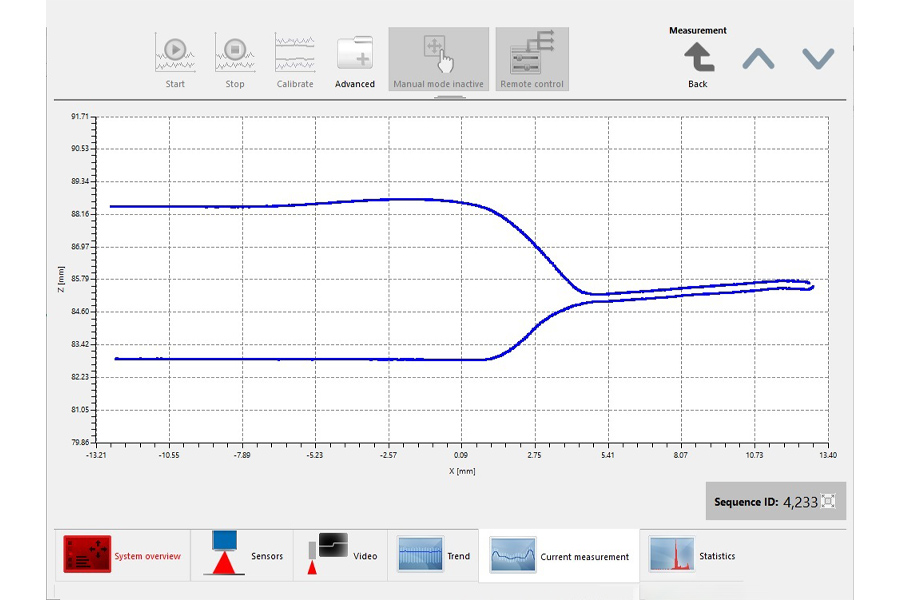

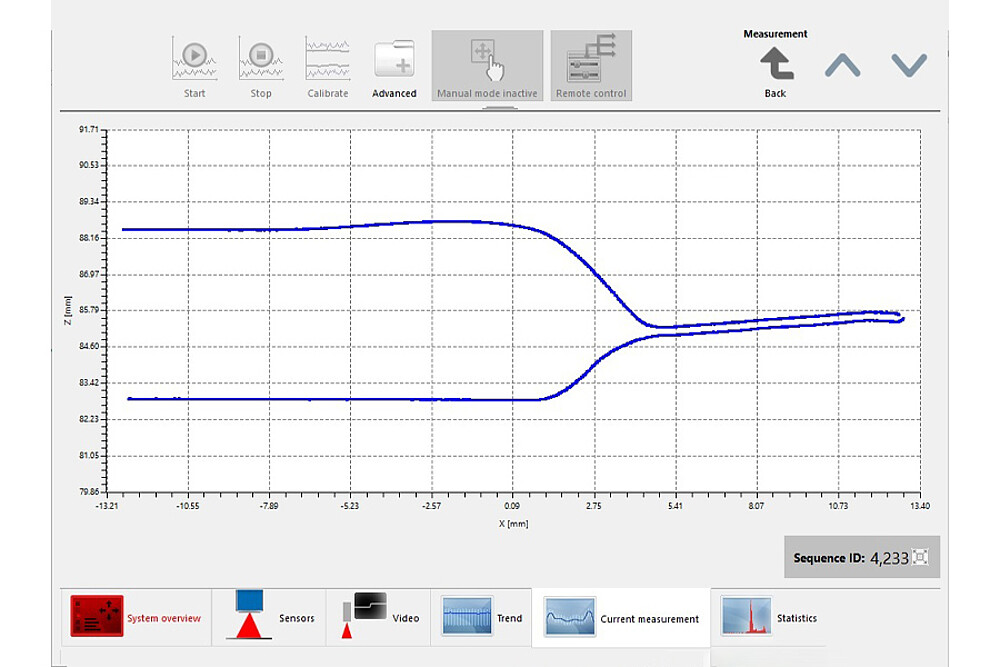

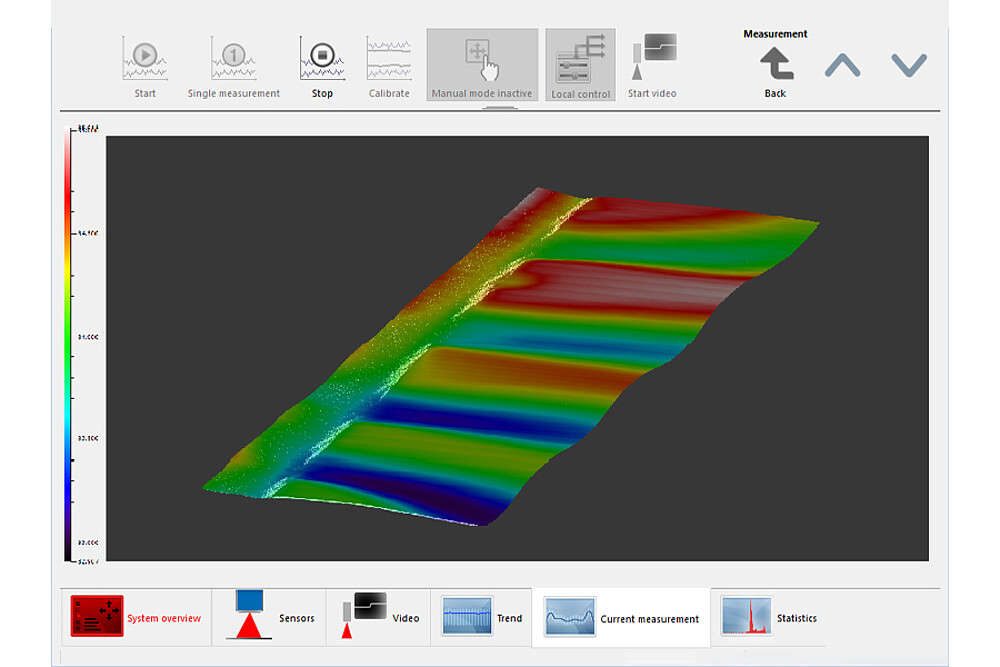

מערכות thicknessGAUGE 3D משמשות למדידה מדויקת בזמן אמת של צורות גיאומטריות, כגון קימור יריעות, קצה של ציפויים או תפרי ריתוך בתאי כיס. מערכות החיישנים מצוידות בשני סורקי לייזר. אלה מזהים את נתוני הפרופיל לאורך תנועה ליניארית, ממזגים אותם לפרופיל כולל ובכך מאפשרים הערכה דו-ממדית או תלת-ממדית. ניתן לתכנת בחופשיות משתנים כגון גובה מדרגה, עקמומיות או רדיוס, המאפשרים לפתור משימות מדידה מורכבות ישירות בתהליך בזמן אמת.
