IF1032/ETH

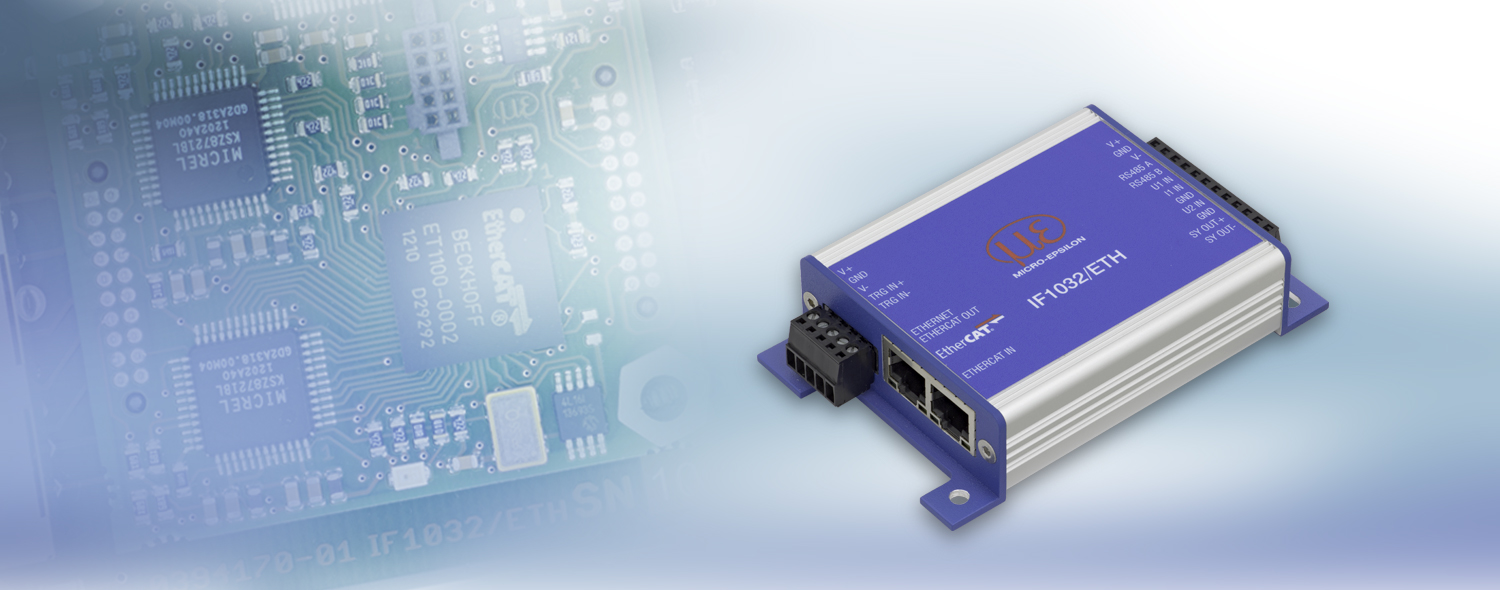

Interface module IF1032/ETH

The IF1032/ETH interface module now enables to run sensors with analogue interfaces with the proven web interface. With the Ethernet interface, measured data can be easily displayed on a PC. Moreover, sensors can be connected to an EtherCAT bus. The RS485 interface allows connection of new sensors using the Micro-Epsilon specific RS485 protocol.

Interfaces

  • Ethernet/EtherCAT
  • 1x RS485 (ME-internal protocol)
  • 2x analogue-in (14 bit, max. 4 ksps), voltage
  • 1x analogue-in, (14 bit, max. 4 ksps), current
  • Inputs for supply voltage
  • Trigger input
  • EtherCAT synchronisation output
  • Output for sensor power supply
