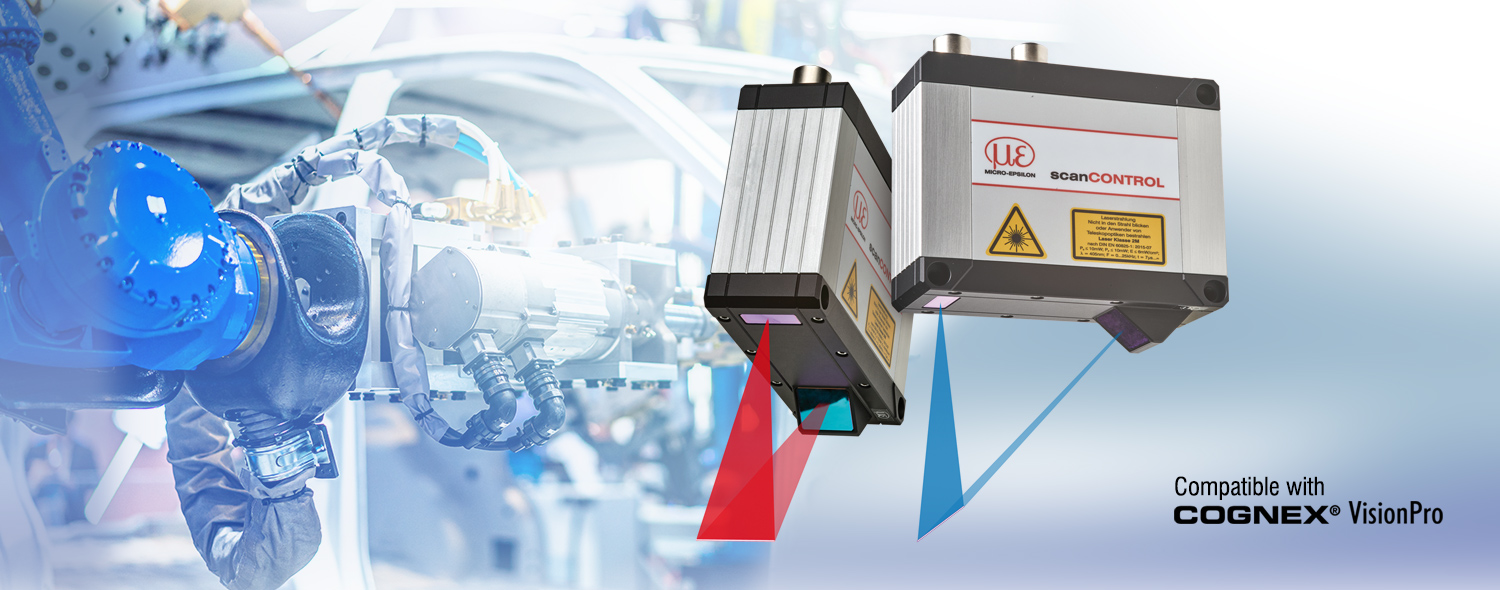

scanCONTROL 30x0

Fast high-precision 2D/3D profile measurements

ืกื•ืจืง ืœื™ื™ื–ืจ ืขื ื‘ื™ืฆื•ืขื™ื ื’ื‘ื•ื”ื™ื

ืกื•ืจืงื™ ื”ืœื™ื™ื–ืจ ืžืกื“ืจืช scanCONTROL 30x0 ื”ื ื—ื™ื™ืฉื ื™ ื”ืคืจื•ืคื™ืœ ื‘ืขืœื™ ื”ื‘ื™ืฆื•ืขื™ื ื”ื’ื‘ื•ื”ื™ื ื‘ื™ื•ืชืจ ื‘ื”ื™ื‘ื˜ื™ ื”ื’ื•ื“ืœ, ื”ื“ื™ื•ืง ื•ืงืฆื‘ ื”ืžื“ื™ื“ื”. ื”ื ืžืกืคืงื™ื ื ืชื•ื ื™ ืคืจื•ืคื™ืœ 2D ืžื›ื•ื™ืœื™ื ืขื ืขื“ 5.5 ืžื™ืœื™ื•ืŸ ื ืงื•ื“ื•ืช ื‘ืฉื ื™ื™ื”. ืžื”ื™ืจื•ืช ืžื“ื™ื“ืช ื”ืคืจื•ืคื™ืœื™ื ืฉืœ ื”ื—ื™ื™ืฉื ื™ื ืฉืœ ืขื“ 10 kHz, ืžืืคืฉืจืช ื‘ื™ืฆื•ืข ืฉืœ ืžื“ื™ื“ื•ืช ืคืจื•ืคื™ืœ ืžื“ื•ื™ืงื•ืช ื‘ืชื”ืœื™ื›ื™ื ื“ื™ื ืžื™ื™ื. ืžื˜ืจื™ืฆืช ื”ื—ื™ื™ืฉื ื™ื ื‘ืจื–ื•ืœื•ืฆื™ื” ื’ื‘ื•ื”ื” ืžืกืคืงืช ืจื–ื•ืœื•ืฆื™ื” ืฉืœ 2,048 ื ืงื•ื“ื•ืช, ืขื ืžืจื—ืง ื ืงื•ื“ื•ืช ืื•ืœื˜ื™ืžื˜ื™ื‘ื™ ืฉืœ 12 ยตm ื‘ืœื‘ื“. ื‘ื“ืจืš ื–ื• ื ื™ืชืŸ ืœื–ื”ื•ืช ืืช ื”ืคืจื˜ื™ื ื”ืงื˜ื ื™ื ื‘ื™ื•ืชืจ ื‘ืฆื•ืจื” ืžื”ื™ืžื ื”.

ืฆื•ืจ ืงืฉืจ
logo

ืžืืคื™ื™ื ื™ื

  1. ื˜ื•ื•ื— ืžื“ื™ื“ื” ื‘ืฆื™ืจ z ืขื“ 600 ืž"ืž
  2. ื˜ื•ื•ื— ืžื“ื™ื“ื” ื‘ืฆื™ืจ x ืขื“ 380 ืž"ืž
  3. ืžื”ื™ืจื•ืช ืžื“ื™ื“ื” ืขื“ 10 kHz
  4. ืงืฆื‘ ืžื“ื™ื“ื” ืฉืœ ืขื“ 10,000,000 ื ืงื•ื“ื•ืช/ืฉื ื™ื”
  5. ืจื–ื•ืœื•ืฆื™ื™ืช ื™ื™ื—ื•ืก ืฆื™ืจ z ืž- 1.5 ฮผm
  6. ืจื–ื•ืœื•ืฆื™ื™ืช ืฆื™ืจ x ืขื“ 2,048 ื ืงื•ื“ื•ืช
  7. ืžืฆื‘ื™ ื”ืคืขืœื” ืฉื•ื ื™ื ืœื‘ื—ื™ืจื”
  8. ื ื™ืชืŸ ืœื”ืฉื™ื’ ื’ื ืขื ืœื™ื™ื–ืจ ื›ื—ื•ืœ
  9. ืขื›ืฉื™ื• ืžื•ืชืื ืขื Cognex VisionPro
  10. ื”ืขืจื›ืช SMART ื”ืžื”ื™ืจื” ื‘ื™ื•ืชืจ ื™ืฉื™ืจื•ืช ื‘ื—ื™ื™ืฉืŸ: ืขื“ 10 ืงื™ืœื•-ื”ืจืฅ
  11. ื—ื™ื‘ื•ืจ ืื•ืคื˜ื™ืžืœื™ ืœ-PLC ืขืงื‘ ืฆืจื•ืจ UDP ืœืœื ืื•ื‘ื“ืŸ ื ืชื•ื ื™ื
[]
ืฆื•ืจ ืงืฉืจ
Shlomo Hirt
972-3-5590277+
Contact form
Your request for: {product}
Please enter the result of the calculation below. This will avoid spam.
captcha
* ืฉื“ื•ืช ื—ื•ื‘ื”
ืื ื• ืžืชื™ื™ื—ืกื™ื ืœืžื™ื“ืข ื‘ื—ืกื™ื•ืŸ ืจื‘. ืื ื ืงืจื ืืช ื”ืฆื”ืจืช ื”ืคืจื˜ื™ื•ืช ืฉืœื ื• (ื‘ืื ื’ืœื™ืช).

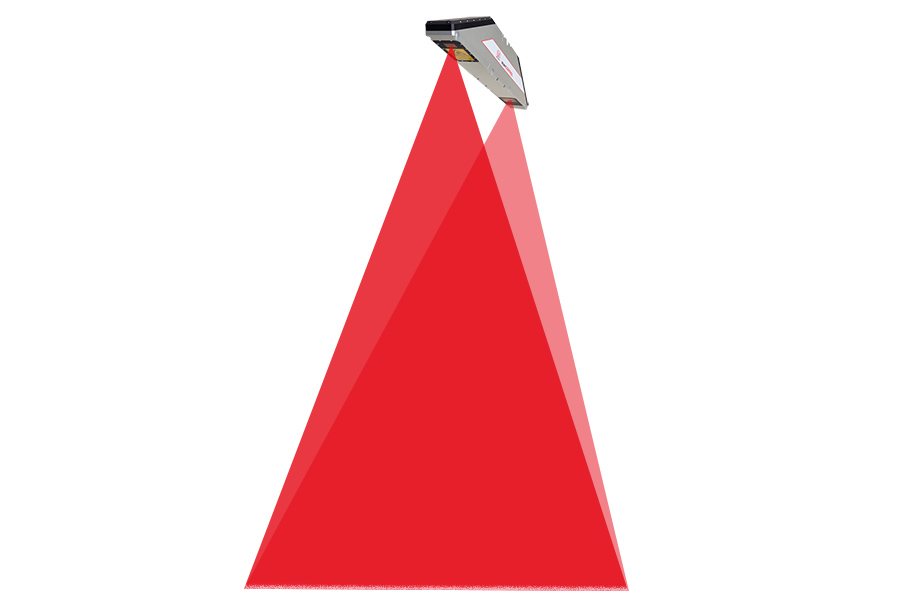

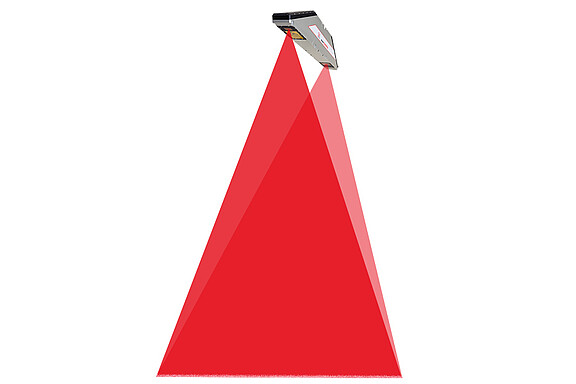

ื˜ื•ื•ื— ืžื“ื™ื“ื” ื’ื“ื•ืœ ืฉืœ 430 ื•-600 ืž"ืž

ืกื•ืจืงื™ ื”ืœื™ื™ื–ืจ scanCONTROL 30x2 ื–ืžื™ื ื™ื ื›ืขืช ื’ื ืขื ื˜ื•ื•ื— ืžื“ื™ื“ื” ื’ื“ื•ืœ, ื”ืžื›ืกื” ืฉื“ื” ืžื“ื™ื“ื” ืฉืœ 430 ืขืœ 390 ืž"ืž ืื• 600 ืขืœ 600 ืž"ืž. ื–ื” ืžืืคืฉืจ ืœืชืขื“ ื—ืคืฆื™ ืžื“ื™ื“ื” ื’ื“ื•ืœื™ื ื‘ื“ื™ื•ืง ื’ื‘ื•ื”.

Laser scanner large measuring range

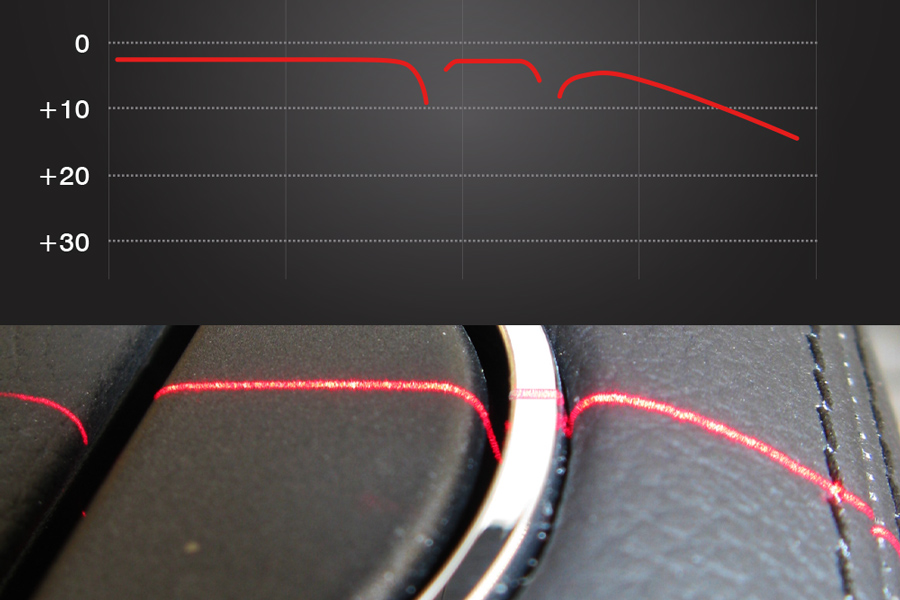

Profile measurement with screenshot on inhomogeneous surfaces

ืžืฆื‘ ื”ืคืขืœื” HDR

ื‘ืขื–ืจืช ืžืฆื‘ ื”ื˜ื•ื•ื— ื”ื“ื™ื ืžื™ (HDR), ื”ื—ื™ื™ืฉืŸ ืžืคื™ืง ืชื•ืฆืื•ืช ืžื“ื™ื“ื” ืžื“ื•ื™ืงื•ืช ืืคื™ืœื• ื‘ืžื“ื™ื“ื” ืขืœ ืžืฉื˜ื—ื™ื ืœื ื”ื•ืžื•ื’ื ื™ื™ื. ื”ื—ืฉื™ืคื” ืžื‘ื•ืฆืขืช ื‘ืžืงื‘ื™ืœ ืœืœื ืกื˜ื™ื™ืช ื–ืžืŸ, ื•ื›ืš ืžืชืืคืฉืจ ื–ื™ื”ื•ื™ ืืžื™ืŸ ืฉืœ ืขืฆืžื™ื ื”ื ืขื™ื ื‘ืžื”ื™ืจื•ืช.

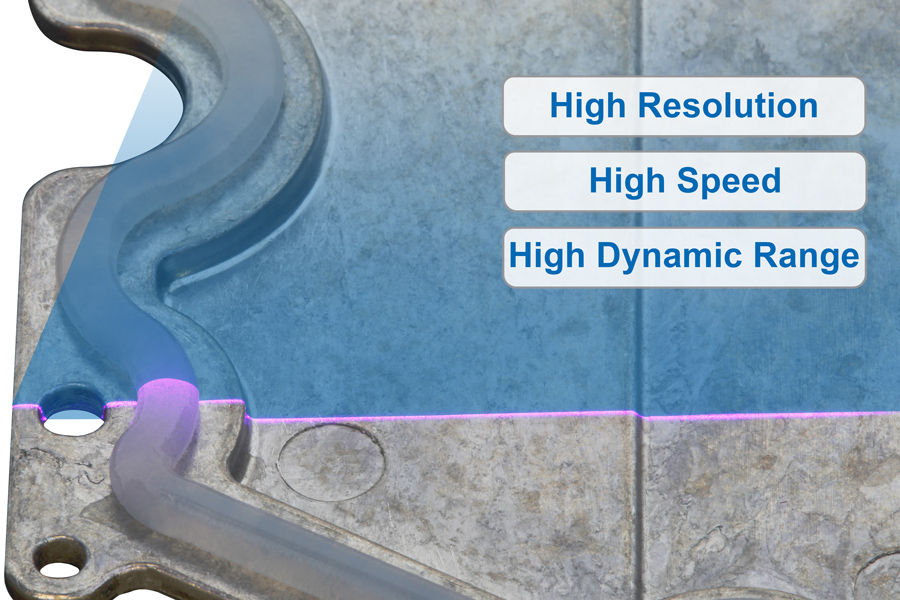

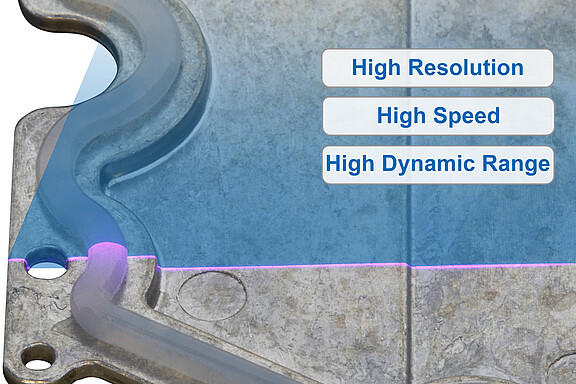

ืชื•ืฆืื•ืช ืžื“ื™ื“ื” ืžื”ื™ืจื•ืช ื‘ืขื–ืจืช ืžืฆื‘ื™ ื”ืคืขืœื” ืžื•ื’ื“ืจื™ื ืžืจืืฉ

ื‘ื—ืจ ืžืชื•ืš ืฉืœื•ืฉื” ืžืฆื‘ื™ ื”ืคืขืœื” ืžื•ื’ื“ืจื™ื ืžืจืืฉ ืืช ื”ืžืฆื‘ ืฉื™ืชืื™ื ืœืžืฉื™ืžืช ื”ืžื“ื™ื“ื” ื”ืกืคืฆื™ืคื™ืช ืฉืœืš: "ืจื–ื•ืœื•ืฆื™ื” ื’ื‘ื•ื”ื”" ืœื“ื™ื•ืง ืžื™ืจื‘ื™, "ื˜ื•ื•ื— ืœื“ื™ื ืžื™ื•ืช ื’ื‘ื•ื”ื”" ืœื’ื™ืœื•ื™ ืคืจื•ืคื™ืœื™ื ืžื™ื˜ื‘ื™ ืขืœ ืžืฉื˜ื—ื™ื ื‘ืขื™ื™ืชื™ื™ื, ื•ืžืฆื‘ "ืžื”ื™ืจื•ืช ื’ื‘ื•ื”ื”" ืœืžื“ื™ื“ื•ืช ืžื”ื™ืจื•ืช ื‘ืžื™ื•ื—ื“.

Measurement with laser scanner

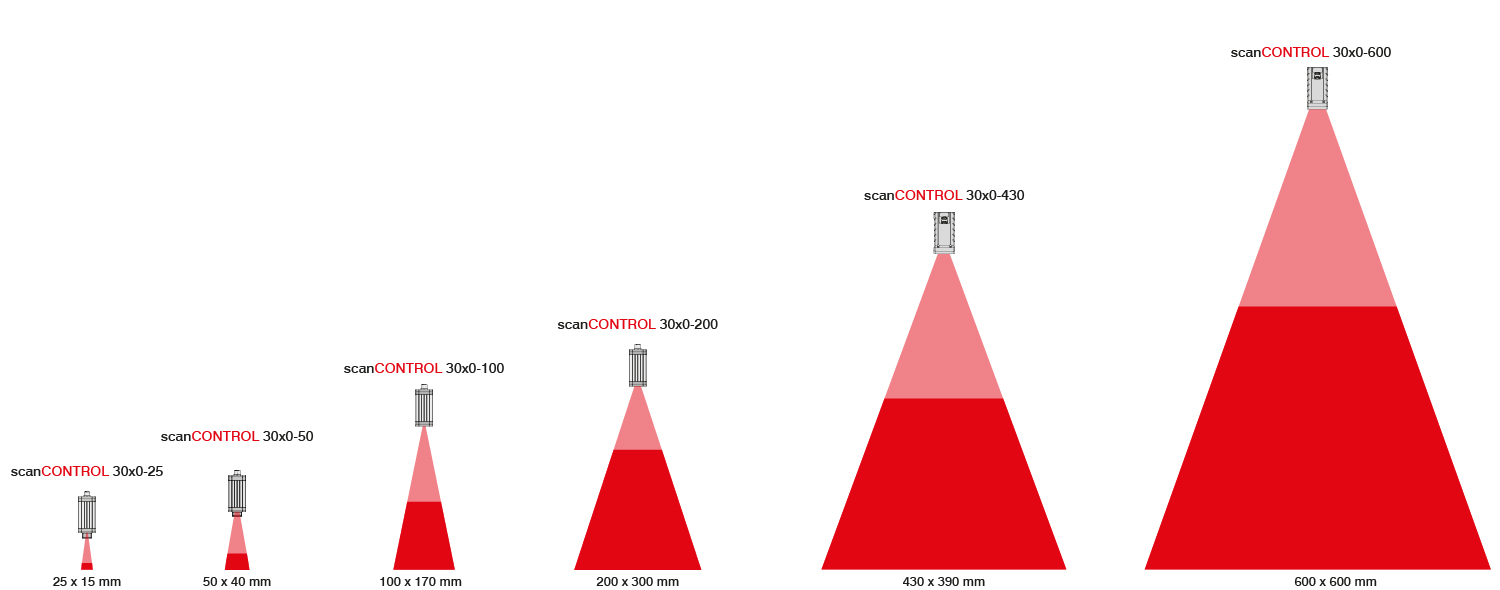

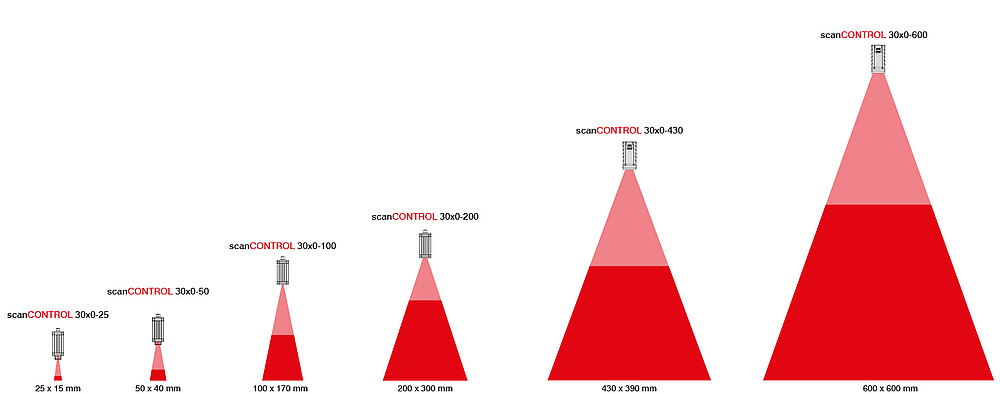

ื˜ื•ื•ื—ื™ ืžื“ื™ื“ื” ื–ืžื™ื ื™ื

Possible measuring ranges scanCONTROL 30x0
