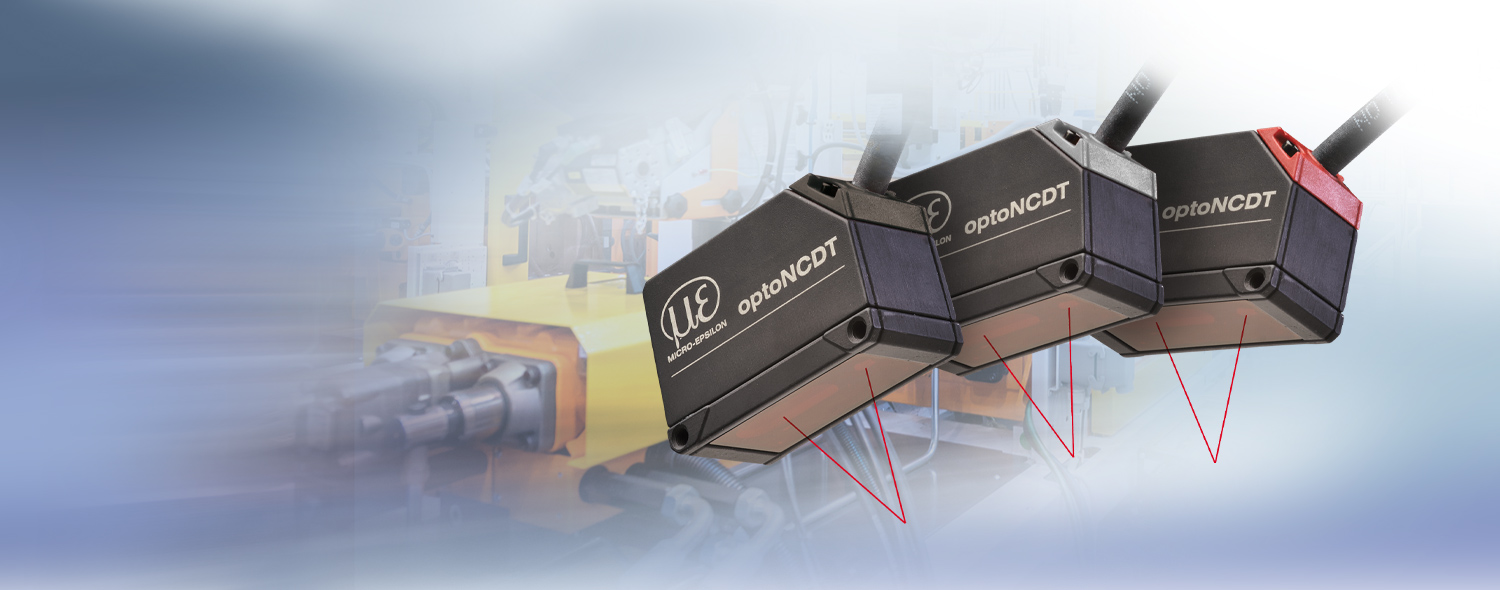

Compact laser displacement sensors - for OEM and series applications
Smart laser sensors for industry and automation โ starting from 470 euros
The optoNCDT 1220 / 1320 and 1420 laser sensors offer the best price/performance ratio in their class. At a list price from 470 euros, you get a user-friendly sensor with integrated controller. Measuring rates up to 8 kHz and high repeatability from 0.5 ยตm ensure reliable measurements of displacement, distance and position.
Special features
- Best accuracy and measuring rate in their class
- Automatic surface compensation for stable measurement results on changing surfaces
- Compact design with integrated controller
- High speed and ease of use (web interface)
- High precision measurement of displacement, distance and position on numerous surfaces

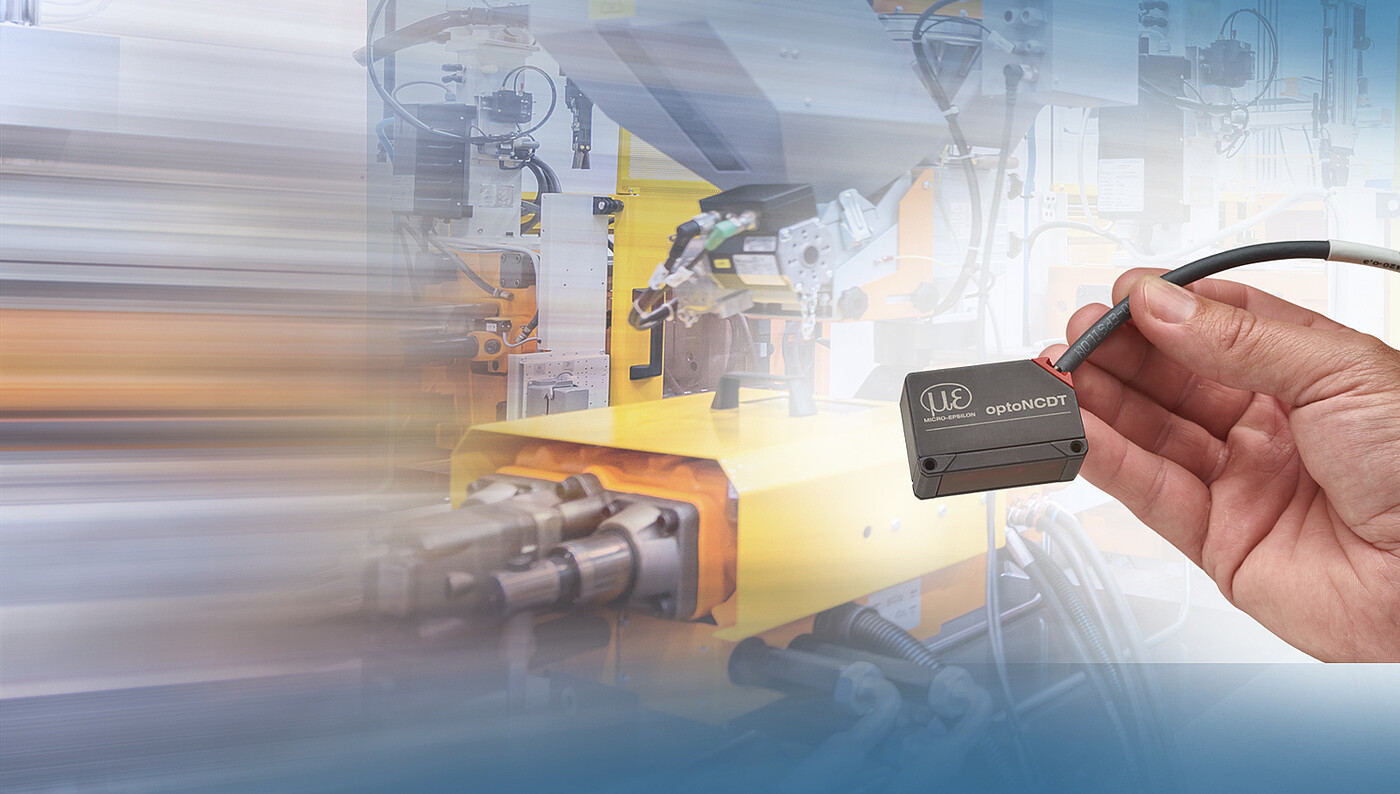

Maximum precision in tightest spaces
Their compact and lightweight design enables the optoNCDT 1220 / 1320 / 1420 sensors to open up numerous fields of application where high accelerations occurs. The sensor can be easily integrated into the customerโs control system via analog and digital interfaces.

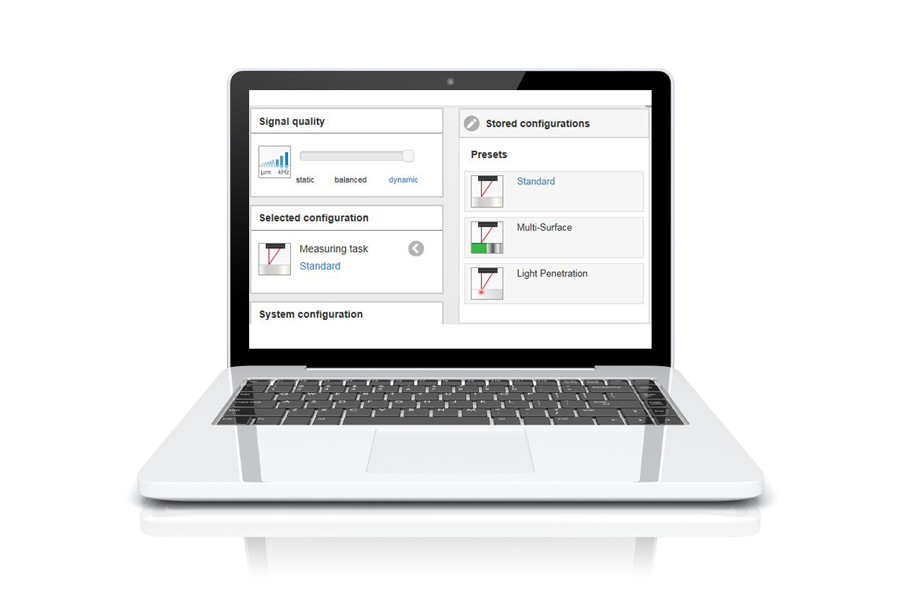

Web interface with comprehensive features
The optoNCDT 1220 / 1320 / 1420 sensors are operated using an intuitive web interface, which can be accessed via a web browser to simplify set up and configuration of the respective measurement task. With different presets, the sensors can be easily taken into service within a remarkably short time.
